Product Description
SALES TO 48 LOWER STATES ONLY. NO AIR FREIGHT AT THIS TIME

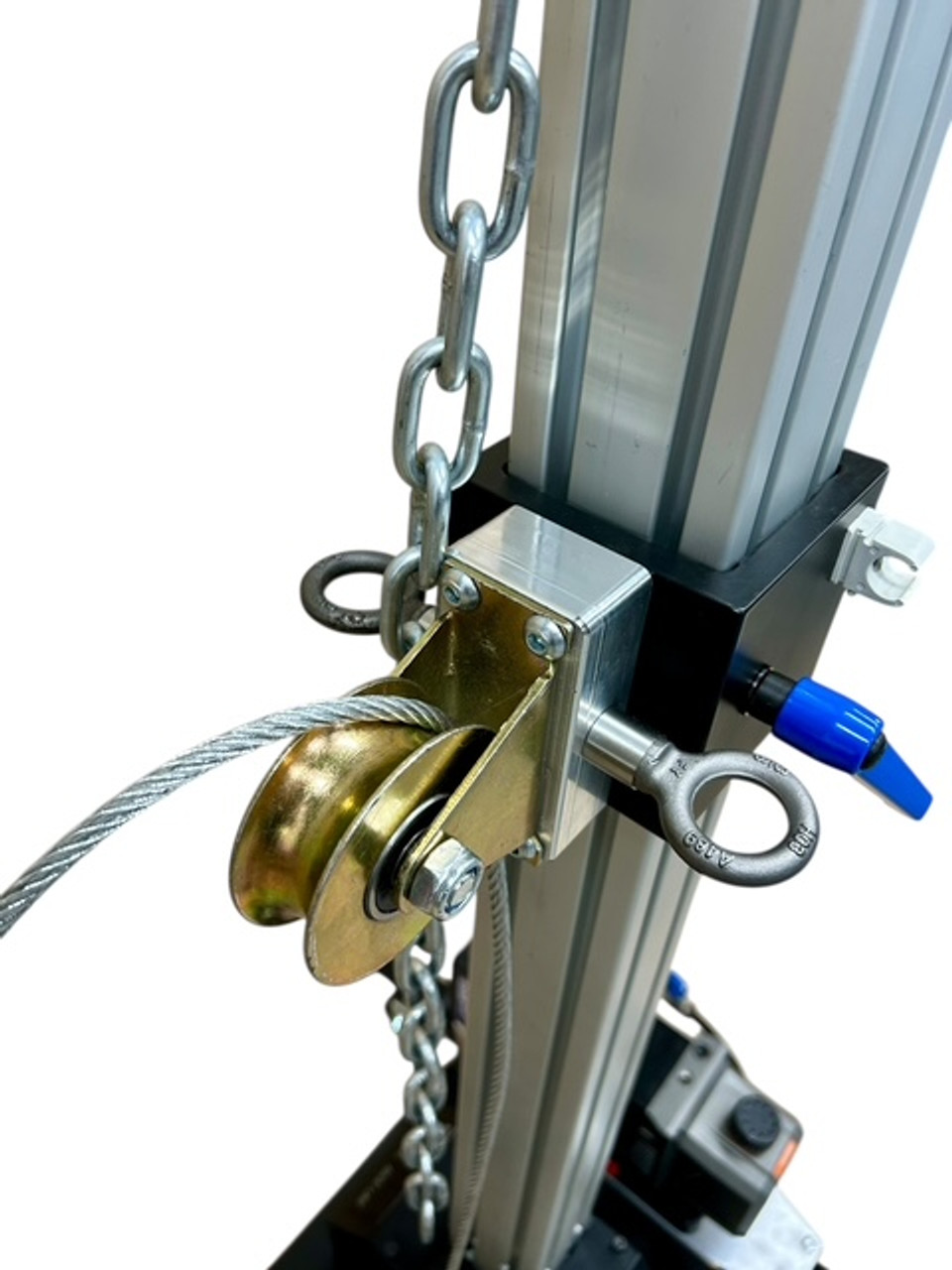

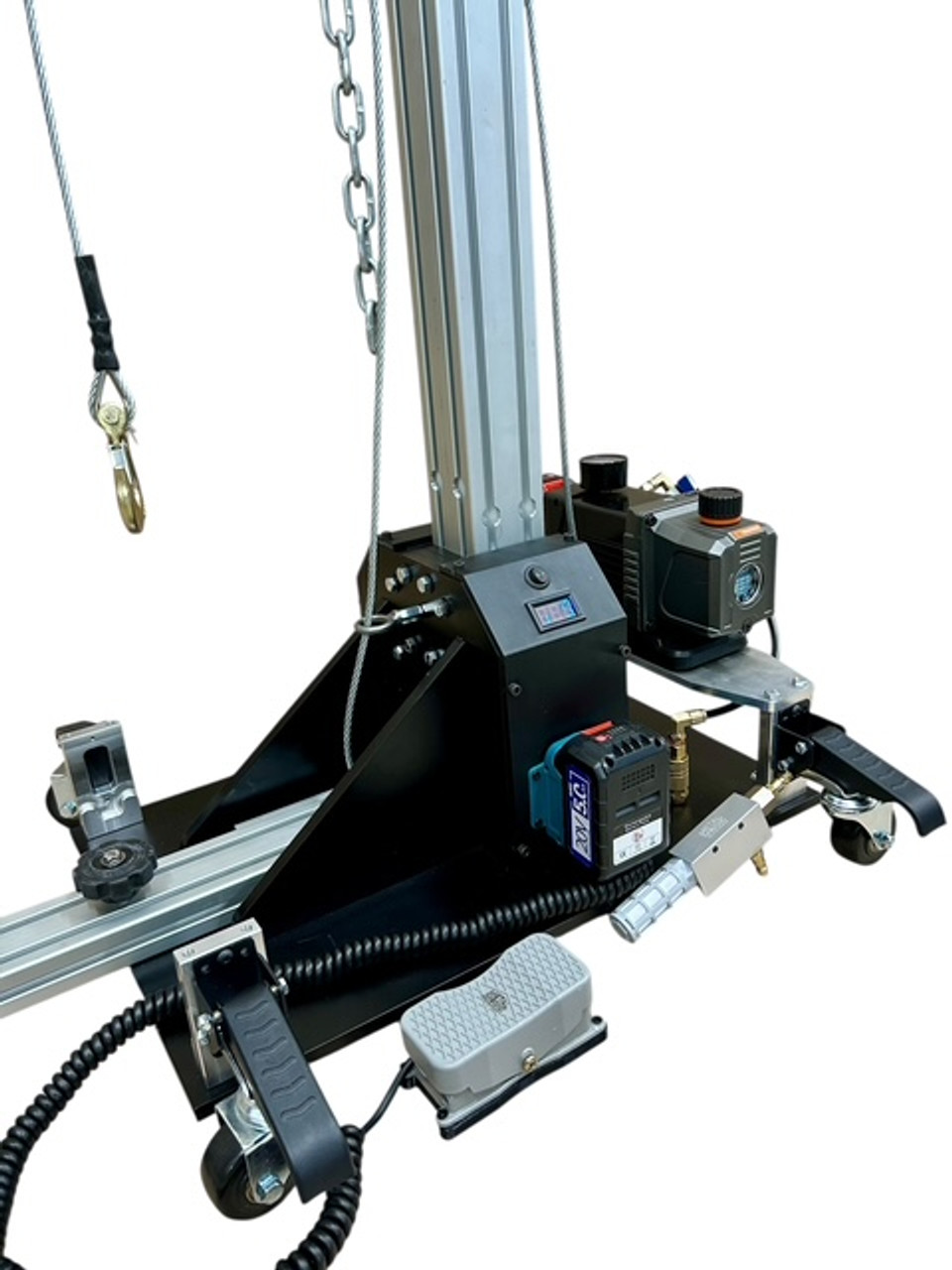

Our all New Intelli-Tower SERIES 1 raises bar on quality, innovation, performance, and value and greater pulling power, all while being made in the USA in our own machine shop. The Series I tower is driven by a battery power 1500lb ram that has a stroke of 12 inches The wire rope is drawn thru a series of pulley which counter-acts the forces to minimize the tower tipping forward. To help stabilize the tower and avoid violent reaction if vacuum seal is broken, a front stabilizer with a self-adjusting rubber pad helps everything stay ridged and secure while providing a lower pulley for down pulls and also accepts an auxiliary vacuum plate. The adjustable pulley block has 2 eye bolts for auxiliary pulling attachments for rachet straps. The 3x3 structural aluminum upright is the strongest of any vacuum based pull tower. The Vacuum base boost over 3800lbs of holding force. The tower comes standard with a compressor driven air pump. An option battery powered vacuum generator can be purchased as an option. An 110 electric vacuum pump is also an option. The vacuum base has a rubber seal the will last a very long time and will seal better than a foam gasket. The 4 castor wheels make moving and positioning the tower very easy and fast. All versions are equipped with a foot petal rocker switch to activate the ram up and down and that allows you to keep both hands free and be at the vehicle instead of behind the tower cranking a winch. The castors wheels also keep the rubber seal of the ground to prevent it from damage and premature wear. The 4 castors also lower the vacuum base for use and them back up for storage. This tower was designed by a tech, made by a tech will techs in mind. The tower was designed for maximum performance with a bargain price. Towers ship for a small fee to the lower 48 states by UPS ground only in 3 boxes. No Overseas sales or to Alaska or Hawaii at this time.
Much more than a glue pull tower, Use it for a portable pull tower, a legit piece of body shop equipment.

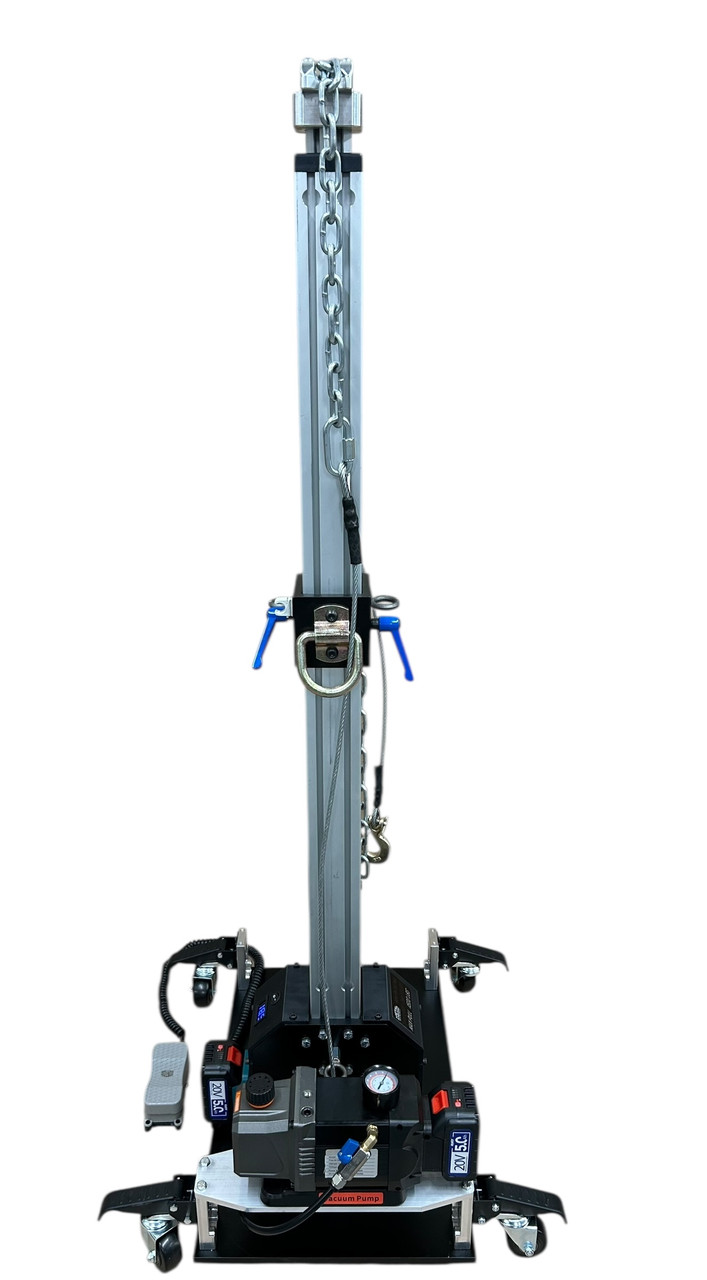

Specs: Tower is 62 inches tall
Base is 16 x 24 inches
1500lb battery powered ram with 12 inches of travel.
foot activated switch for hands free operation
Has down pull capability with built inn lower pulley on front stabilizer.
Dual rubber seals to insure quick and strong vacuum seal even on ruff surfaces
Optional Battery power 1/4 HP 20-volt vacuum pump rated at 5CFM and a 5 Pa max vacuum for 120 minutes.
Option 110v powered 1/2hp vacuum pump rated at 7 CFM
No need to step on vacuum plate to get a seal.
Vacuum plate generates over 3800 lbs. of atmospheric pressure under vacuum @28HG
Can be operated with compressed air with option vacuum generator.
Excellent design and strong materials make for a very ridged tower.
Made in Eureka Illinois, USA in our own machine shop with as many domestic parts and materials as possible.
Tech designed with the Tech in Mind.
Proprietary pulley systems that increase pulling forces and helps stabilize tower from tipping forward.
Pulling power average, 1200-1500lbs
Available with compressed air vacuum generator only(standard)
Available with Battery powered pump and compressed air pump
Available with 110v pump and compressed air vacuum generator
Please allow 1-3 week for delivery as we will be making them as they are ordered
